Brass shut-off valves are a key element of modern engineering networks. Thanks to the unique properties of the alloy, these products ensure stable operation of water supply and heating systems.
Product
Gate valves
Latches with an electric drive
Electric gate valves
Valves with a pneumatic drive
Connection of pipelines
Repair clamps
Aeration pistons
Close "Butterfly"
Close with an eccentric
Close "Butterfly"
with an electric drive
Close "Butterfly"
with pneumatic drive
Close "Butterfly"
with a worm gear
Close "Butterfly"
with end signals
Ball valves
Brass ball valves
Ball valves
with an electric drive
Ball valves
with pneumatic drive
Ball valves
with a worm gear
Pumps
Hydraulic accumulators
Globe valves
Bellow compensators
Check valves
Vibration inserts
Safety valves
Sediment filters
Condensate diverters
Electric drives
Pneumatic drives
Worm reducers
Electromagnetic valves
Threaded fittings
Pipeline details
Flanges
Fill out the form and our manager:
Will advise on the availability of equipment, issue an invoice for payment, and prepare a full estimate at your request
Don't waste time on choosing equipment yourself

    Creation date:
    Update date:

    The main purpose of valves is to completely block or regulate the flow of the working medium (water, coolant, steam).
    Brass fittings are characterized by high corrosion resistance, the ability to operate in a wide temperature range (from -20 °C to +180 °C) and long service life.

    Types of brass fittings in plumbing systems

    Various types of products are used to complete pipelines, each of which has its own purpose:

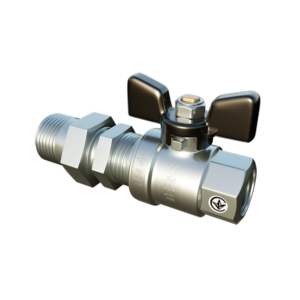

    • Ball valves — the most popular type of shut-off valve. The working element (ball) rotates on 90°, providing quick flow shut-off. Available in coupling (threaded) versions, as well as in versions with an "American" (quick-release connection).
    • Valves (shutoff valves) — unlike taps, they are designed not only for shut-off, but also for precise regulation of fluid flow. Most often used in heating systems.
    • Gate valves — used mainly on main lines (diameter from DN 40–50) for reliable flow shut-off at high operating pressures.

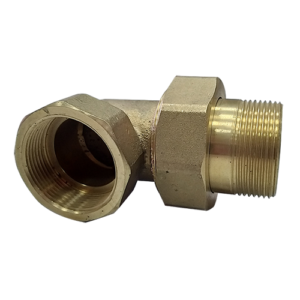

    • Connecting elements ("Americans") — straight and angled assemblies that allow for quick assembly/disassembly of system sections and changing the direction of the pipeline.

    Purpose and key benefits

    Brass fittings perform critical functions for system safety and efficiency:

    1. Hermetic cut-off — the ability to quickly isolate an area for repair or replacement of equipment.
    2. Adjusting parameters — change in pressure and flow rate of the medium within the operating parameters PN (nominal pressure).
    3. Equipment protection — preventing damage to pumps, boilers and meters by controlling flow.
    4. High tightness — most products meet high tightness classes (class A), which eliminates leaks.

    Advantages of brass:

    • Mechanical strength and resistance to water hammer.
    • Thermal stability (no deformation when heated).
    • Versatility for domestic and industrial sectors.
    • Easy installation thanks to precise threading.

    Corrosion resistance and durability

    The high performance characteristics of brass devices are due to the chemical composition of the alloy:

    • Oxidation protection: Brass does not rust. A protective oxide film forms on its surface, which allows the fittings to be used in contact with fresh and even sea water.
    • Resource: With proper selection and operation, the service life is 10–20 years or to 50,000 cycles «"open-closed".
    • Stability: The material withstands vibration loads and does not lose its properties under the influence of aggressive impurities in the coolant.

    Installation and operating rules

    To ensure maximum service life, it is recommended to follow the installation technology and care rules:

    1. Professional installation: The process includes thread preparation, use of seals (fum tape or sealants), pressing the system and final tightness testing.
    2. Operating mode: Ball valves should only be in their extreme positions - «"fully open"» or «"completely closed"». Using them in an intermediate state leads to premature wear of the seals.
    3. Prevention: It is recommended to turn the handle every 6 months to prevent jamming due to salt and scale deposits.

    How to choose quality brass fittings?

    When buying, pay attention to the following criteria:

    • Product weight: A quality brass faucet cannot be too light (this is a sign of thin walls or the use of silumin).
    • Marking: Check the settings DN (notional diameter) and PN (working pressure).
    • Coating quality: The surface must be smooth, without cracks or swelling.

    You can buy certified brass fittings at a favorable price from the company UKSPAR. We are the leaders of the Ukrainian market and offer reliable solutions for any engineering tasks. Our managers will provide professional advice and help you choose the optimal model.
