Condensate diverters
UKSPAR is a Ukrainian manufacturer of steel steam traps. The company produces thermodynamic and float models with threaded (coupling) and flange connections. Product diameters are DN 15–150 mm, pressure class PN16.
How the condensate trap works
The valve separates the steam from the non-condensed working stream in various ways, depending on the type of product. Excess moisture is removed when there is free space inside the system, after which it is discharged to the outside through an opening in the housing. Inside the structure there is a shutter that opens and closes automatically. Condensate is discharged periodically or continuously, depending on the system.
The main task of a steam trap is to pass the condensate that has formed and minimize the loss of working steam. The principle of operation depends on the design of the device: thermodynamic models use the difference in the speed of movement of steam and condensate, and float models use the difference in their density.
What are condensate traps
Steam traps differ in their operating principle, design, and method of condensate removal. The main difference between models is the mechanism that automatically determines when to open and close the passage to remove condensate.
According to the principle of operation, steam traps are divided into three main groups:
- thermodynamic;
- thermostatic;
- float
The UKSPAR range includes two types of steam traps - thermodynamic and float. Thermostatic models belong to a separate type of steam trap fittings, but are not represented in the UKSPAR range.
Steam traps are also classified by the method of connection to the pipeline. Depending on the design, the products may have a threaded (coupling) or flange connection.
Main types of steam trap connections:
- Threaded (coupling).
- Flanged
The choice of connection type depends on the design of the pipeline, its diameter and the method of installation of the fittings. Threaded (coupling) steam traps are suitable for pipelines of small diameter, and flange models are used for connection to pipelines of the appropriate size.
Thermodynamic condensate traps
Thermodynamic products work with the help of energy generated when condensate is brought to a boiling state. The design of the armature includes a disk that rotates and covers or opens the outlet. The heated condensate, moving at a low speed, opens the disk and flows out, after which the pressure in the system drops. The steam accumulated on top, on the contrary, moves quickly and lowers the shutter into the seat until the next cycle.
Thermodynamic steam traps are characterized by compact dimensions, lightness, high efficiency and ease of maintenance. They are suitable for steam systems with increased requirements for operating pressure and temperature. Such products are relevant for pipelines with hot steam flowing under high pressure. The operating temperature of the products is up to +250 °C.
The UKSPAR range includes thermodynamic steam traps with coupling and flange connections.
Thermostatic condensate traps
Thermostatic products operate due to the difference in temperature of the working medium and the moisture that accumulates. The working element is a capsule that forms or closes the passage in the system, acting on the pressure element. Under normal operating conditions, steam moves freely in the system. If condensate accumulates inside, the filler in the capsule heats up, after which the protective membrane expands, the outlet channel opens and excess liquid is removed from the main.
Thermostatic products are characterized by inertia (they cool condensate before discharge), good performance, resistance to freezing, and ease of maintenance. They are suitable for systems in which not only condensate must be removed, but also excess air and extraneous gases.
Thermostatic steam traps belong to one of the main structural types of such fittings, however, these products are not represented in the UKSPAR assortment.

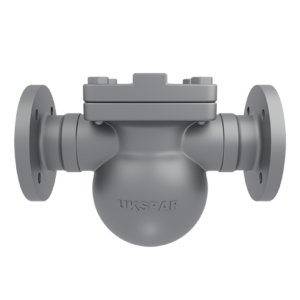

Float steam traps (coupling and flanged)
Float products work due to the difference in the density of the working medium and condensate. The built-in float rises when the water level rises and lowers after it is released. Such products work continuously and remove excess liquid, the temperature of which is equal to the temperature of steam. Fittings are suitable for systems with a large working area and with increased condensate formation.
Float steam traps ensure continuous drainage of the condensate that forms, therefore they are used in systems where it is necessary to constantly remove liquid without its accumulation.
UKSPAR float steam traps are available in two versions: coupling — Do 15–50, and flanged — DN 15–150, body — steel, pressure class PN16.
In the UKSPAR store you can buy steam traps of our own production. The fittings are manufactured in accordance with GOSTs, have certificates of conformity and an accompanying warranty.
How to choose a condensate drain
When selecting a steam trap, the operating principle, system operating parameters, pipeline diameter and connection method are taken into account. It is also necessary to consider the operating temperature and pressure, the amount of condensate formed, and the requirements of a specific section of the steam system.
Float models are used for systems that require continuous removal of large amounts of condensate. Thermodynamic steam traps are used in systems where compact size, simple design, and operation with hot steam are important.
To select the appropriate UKSPAR model, it is necessary to compare the pipeline parameters with the technical characteristics of a specific product, in particular DN, PN, operating temperature and connection type.
Where to install condensate drains
Condensate traps are installed in places where condensate is formed and accumulated: on steam pipelines, after heating elements, radiators and in front of areas where it is necessary to prevent the accumulation of liquid. The exact installation location depends on the pipeline layout and equipment features.
UKSPAR steam traps price
The price of a steam trap depends on the type (float/thermodynamic), connection method, and DN diameter. See the current price for UKSPAR steam traps in the product cards or check with the manager — the manufacturer provides prices from the factory, without any intermediary markups.
