Ball valves

A ball valve is a key element of shut-off valves, on which the tightness and reliability of pipeline systems largely depend. Combining simplicity of design, functionality and durability, it has become indispensable in household systems and industrial networks.

What are ball valves and their role in pipelines?

A water ball valve is a type of shut-off valve used to shut off the flow of liquid or gas in a pipeline.
The mechanism is based on a ball valve - a spherical element with a through hole in the center. It can rotate around its axis, and it is the change in its position that determines whether the valve is open or closed. When it is open, the direction of the pipe and the hole in the ball coincide, thereby ensuring an uninterrupted flow of liquid or gas in the pipeline. When the valve is closed, the ball valve takes a position in which it closes the pipe, blocking further flow.
Ball valves play a critical role in many industries where reliable flow control is required. They are indispensable in:

• in water supply systems - for quick disconnection of individual sections of the pipeline for repair work or in the event of an accident;
• heating systems - for instant shutdown of boilers, radiators, to eliminate the problem in case of a leak;
• in gas systems - for quick response in case of dangerous situations, for planned shutdown of gas supply to the system;
• oil and gas industry - for monitoring high-pressure pipelines;
• chemical industry - to control the supply of chemically aggressive substances, quickly shut off the flow in case of risk of leakage.

Importantly: shut-off valve with a ball mechanism is used to completely block the flow. If this type of valve is not fully closed or opened (in an intermediate position), this can lead to damage to the valve and loss of tightness.

Design and types of ball valves

Regardless of what ball valves are used - for water, gas, chemically aggressive substances - the design of the devices is similar. The main element is a metal body, inside which there is a spherical shut-off valve (ball) with a through hole. Around the ball there are seats made of sealing materials that ensure the tightness of the assembly when the valve is closed. The position of the ball valve can be quickly changed using a long handle or a "butterfly" on the valve body.
Depending on the method of connecting pipes and shut-off valves, the following types of ball valves are distinguished:

1. Ball valve with coupling. The most popular type for domestic use. It has internal threads at both ends of the body, with which it is screwed to threaded connections on the pipeline. Most often made of brass and stainless steel. Used in systems with medium and small pipe diameters. In models designed for systems with high pressure or aggressive environments, a steel coupling is used, which provides mechanical stability and tightness.

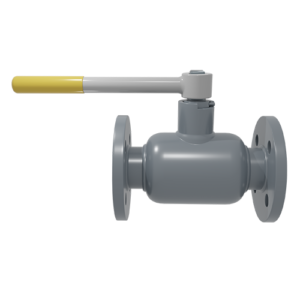

2. Flanged ball valve. Most often mounted on large diameter pipelines. The valve is installed by connecting the flanges of the valve and the pipe with bolts. This method provides a reliable, easily removable connection, which is important for plumbing equipment, where periodic maintenance may be required.

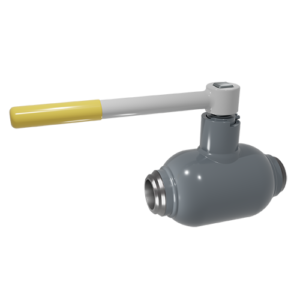

3. Welded ball valve. Provides the most reliable fixation and complete tightness of the connection, since the shut-off valve is welded directly to the pipe. Such options are in demand in systems with high pressure and/or temperature, where it is important to avoid the risk of leakage.

Comparative table of the main types of ball valves.

Advantages of using ball valves

Compared to other types of shut-off valves, ball valves are less sensitive to contamination, as the spherical valve has the ability to self-clean during rotation. This reduces the risk of plaque and clogging, which is especially important for pipelines that transport liquids with impurities. However, experts still strongly recommend installing a filter in front of the shut-off valve in water pipes. sediment filters or other type. This will help maintain the system's efficiency and extend its service life.
Another advantage of ball valves is their minimal hydraulic resistance in the open position. This feature is critical for systems where pressure stability is important, such as in main pipelines.
Other key advantages of ball valves include high reliability, tightness, ease of installation and operation, durability, and small size. But most importantly, they allow you to instantly completely shut off the flow, which is important in critical situations.

How to choose the right ball valve for water

Experts from the Ukspar online store recommend choosing a ball valve, paying attention to the following aspects:

1. Purpose and type of connection. For domestic needs, coupling models are ideal. They are easy to install, and for convenient control, you should choose a standard ball valve with a handle. For industrial systems and mains, flanged and welded ones are more suitable, as they can withstand high pressure and provide maximum tightness.
2. Body and ball material. Brass is suitable for household needs. It is resistant to corrosion and has the best price-quality ratio. If you need maximum resistance to corrosion, high temperatures and pressure, stainless steel is suitable. Propylene models are used with plastic pipes, but they are short-lived.
3. Diameter and bore. Make sure the diameters of the valve and the pipeline match. Full bore models (the diameter of the hole in the ball matches the diameter of the pipe) are the best choice for most systems.

Taking these nuances into account, you will be able to choose plumbing fittings that are reliable, practical, and compatible with the pipeline.

Where to buy ball valves in Ukraine

To buy a ball valve of guaranteed high quality with delivery in Ukraine, pay attention to the offer of our online store. We offer a large selection of pipeline fittings, including for shut-off and flow regulation. The Ukspar assortment is products of reliable manufacturers who have proven themselves well on the market and received many positive reviews.
